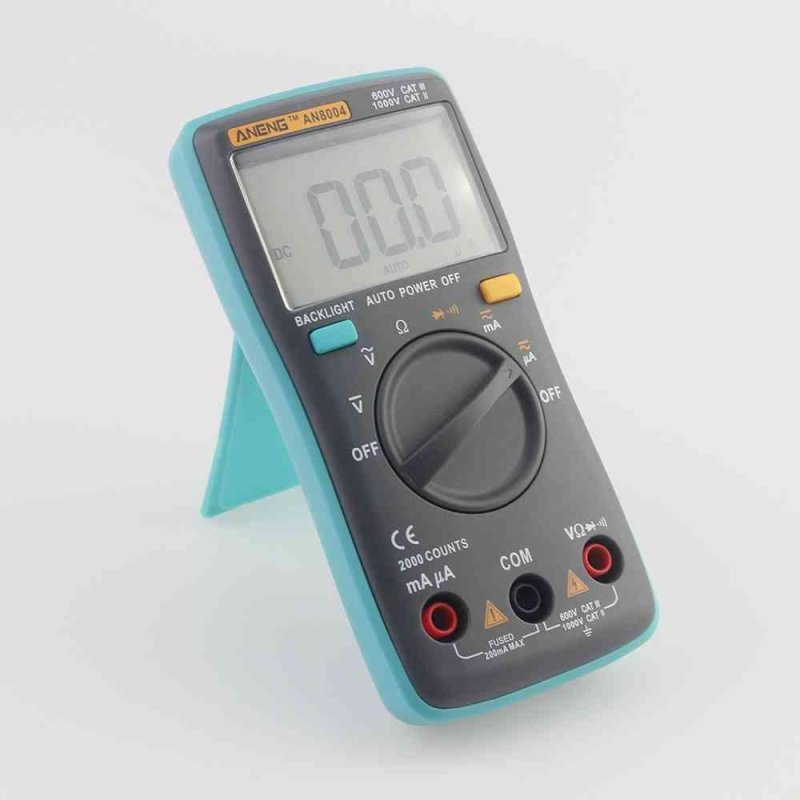

AN8004 LCD Digital Meter Multimeter Voltmeter Ammeter AC DC Ohmmeter Tester Hot - intl

Status: In stock
SGD 16.09
Payment on delivery
Van chuyen don gianSimple shipping
San pham chat luong High quality products
Ban hang toan quoc Nationwide sales
Thanh toan khi nhan hang Simple shipping

Product details of AN8004 LCD Digital Meter Multimeter Voltmeter Ammeter AC DC Ohmmeter Tester Hot - intl

Description:

Description:

Auto ranges

550V protection in Resistance、Capacitance and Frequency ranges

Large LCD display,MAX display 1999 counts

Sample rate: 3 times per second

backlight

Data hold

Relative measurement

Polarity identification

Low voltage indication

10A high current and low current measurement

Auto power off

Main measurements:AC/DC Voltage, AC/DC Current, Resistance,Capacitance,

Diode and Continuity Testing,Frequency and duty cycle.

Frequency:1Hz to 10MHz

Capacitance :10pF to 4000uF

AC volts: 0.1mV to 750V

DC volts:0.1mV to 1000V

AC current:0.1uA to 10A

DC current:0.1uA to 10A

Resistance :0.1Ω to 40MΩ

Duty cycle:1% to 99%

Specification:

Color: Orange, green

Capacitance:4nF(±5.0%+4),40nF(±2.5%+4),400nF/4.000uF/40.00uF/400.0uF/1000uF/4000uF(±3.5%+4)

DC volts:400mV/4V/40V(±0.5%+4),400V/600V(±0.8%+4)

AC volts: 400mV(±1.5%+4), 4V/40V/400V(±1.2%+4),600V(±1.5%+4)

DC current:40mA/400mA(±1.0%+4),10A(±1.5%+4)

AC current:40mA/400mA/10A(±2.0%+4 ,50-200Hz)

Resistance :400Ω/4K/40K/400K/4M(±0.8%+4),40MΩ(±2.0%+4)

Frequency:99.5/999.5/9.999k/99.99k/999.9k/9.999MHz (±0.08%+2)

Duty cycle:0.1% to 99.9%(±0.08%+2)

Measurement mode: △Σmode

Over range indication: OL

Working environment: 0~40℃, relative humidity < 80%

Power supply voltage: 3V (AAA x2 Pcs 1.5V) (Battery not included)

Dimension:  130*65*30mm

Weight: 200g

Specifications:

Auto ranges

Large LCD display,MAX display 1999 counts

backlight

Relative measurement

Polarity identification

Low voltage indication

Package Included:

1 x Multimeter
